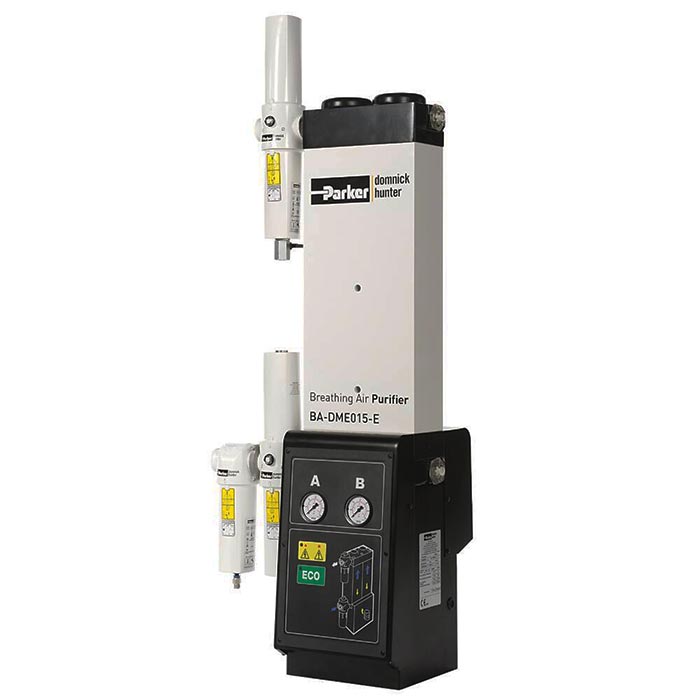

BA-DME Breathing Air Purifiers

The Parker Domnick Hunter BA-DME range of breathing air purifiers are ideal for point of use multiple personnel protection at medium flow rates.

BA-DME Breathing Air Purifiers reduce CO, CO2, Water Vapor, Particulates & Microorganisms with an efficiency of 99.9999%.

Flow Rates Up to 140 (@100 psig) CFM

Call us TODAY at 727-847-4900 or
Toll Free at 800-761-4298

Get A Free Quote!

Model(s): BA-DME012-NPT, BA-DME015-NPT, BA-DME020-NPT, BA-DME025-NPT, BA-DME030-NPT, BA-DME040-NPT, BA-DME050-NPT, BA-DME070-NPT, BA-DME080-NPT

Product Overview
The Parker domnick hunter BA-DME range of Breathing Air Purifiers is ideal for point of use multiple personnel protection at medium flow rates.

At the inlet, a General Purpose Filter removes particles, dirt and aerosols, followed immediately by a second stage High Efficiency Coalescing Filter to reduce oil and water content and a third stage Activated Carbon Filter to remove oil vapor and odors. The fourth stage adsorption dryer, reduces the water vapor content of the compressed air (to -40°F (-40°C) pdp) and CO2, NO and NO2 levels to below the legal permissible limits. Downstream of the adsorption dryer, a catalyst converts carbon monoxide to carbon dioxide, again, to below the legal limits. A final Dust Filter captures any particulates carried over from the adsorption materials.

Features
• 6 Purification stages

• CO and CO2 reduction to below legal permissible limits

• Use with any compressed air supply

Note(s):
1. All BA-DME models are manufcatured with BSP connections. BSP to NPT adapters are included as standard (ship loose).
2. Stated flows are for operation at 7 bar g (100 psi g / 0.7 MPa g) with reference to 20ºC, 1 bar a, 0% relative water vapor pressure. Consult mdi for flow rates at other conditions.
3. (DDS) Dewpoint Dependent Switching Option.
4. Optional CO monitor ships loose. CO monitor is CE only (not UL).
5. BA-DME units are CE only (Not UL). BA-DME units do not have CRN.

Sizing and Selection
To ensure quoted air purity performance is met, a breathing air system must be sized correctly for minimum operating pressure, maximum inlet temperature and maximum inlet flow rate using the correction factors found in the Product Information Sheet.

For more information or a detailed discussion about your specific requirements please contact us at 727-847-4900 or Toll Free at 800-761-4298.


FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE. This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise. The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors. To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.

Technical Specifications BA-DME 012 - 040
*Scroll to the right to see entire chart on mobile.

Dewpoint
(Standard)
Min Operating
Pressure
Max Operating
Pressure
Min Operating
Temp
Max Operating
Temp
Electrical
-40° F 58 psi g 232 psi g 35° F 86° F 230V
1Ph 50/60Hz

Technical Specifications BA-DME 050 - 080
*Scroll to the right to see entire chart on mobile.
Dewpoint
(Standard)
Min Operating
Pressure
Max Operating
Pressure
Min Operating
Temp
Max Operating
Temp
Electrical
-40° F 58 psi g 188.5 psi g 35° F 86° F 230V
1Ph 50/60Hz

MODELS INLET(NPT) OUTLET(NPT) INLET FLOWRATE(CFM) OUTLET FLOWRATE(CFM)
BA-DME012-NPT 1/2" 3/8" 24 19
BA-DME015-NPT 1/2" 3/4" 32 25
BA-DME020-NPT 1/2" 3/4" 42 33
BA-DME025-NPT 1/2" 3/4" 53 42
BA-DME030-NPT 1/2" 3/4" 65 52
BA-DME040-NPT 3/4" 3/4" 88 70
BA-DME050-NPT 1" 1" 106 84
BA-DME060-NPT 1" 1" 130 104
BA-DME080-NPT 1" 1" 176 140

Dimensions in (mm) and weight lb (kg)
*Scroll to the right to see entire chart on mobile.

Model
Height in (mm)
Width in (mm)
Depth in (mm)
Weightlb (kg)
BA-DME012-NPT 37.5 (952) 18.7 (476) 11.9 (302) 84 (38)
BA-DME015-NPT 47.7 (1211) 19.3 (490) 11.9 (302) 95 (43)
BA-DME020-NPT 54.2 (1376) 19.3 (490) 11.9 (302) 106 (48)
BA-DME025-NPT 60.7 (1541) 19.3 (490) 11.9 (302) 117 (53)
BA-DME030-NPT 67.2 (1707) 20.5 (521) 11.9 (302) 128 (58)
BA-DME040-NPT 77.2 (1960) 28.8 (732) 17.6 (447) 164 (74)
BA-DME050-NPT 68.9 (1750) 15.8 (400) 47.2 (1200) 466 (211)
BA-DME060-NPT 75.4 (1916) 15.8 (400) 47.2 (1200) 494 (244)
BA-DME080-NPT 81.7 (2076) 29.3 (745) 47.2 (1200) 615 (279)
